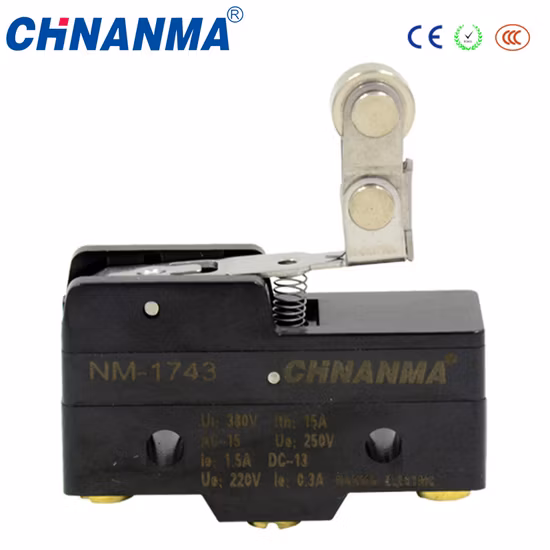

Kinds of 15A Panel Mount Cross Roller Plunger Micro Switch

Basic Info.

Model NO.	NM-1308
Breaking Form	Single Type
Application	Automatic Machine and Instrument
Brand	Chnanma
Certification	CE, CCC
IP	20
Max. Current	15
Operating Temperature	25 °c to +80 °c
Max. Voltage	AC250
Weight	22 to 58g
Transport Package	100PCS in One Box or as Customer Request
Specification	CE
Trademark	Chnanma or as customer request
Origin	Zhejiang China (Mainland)
HS Code	8543909000
Production Capacity	100000000PCS/Year

Product Description

Tip material: Silver tip
Contact material: Brass
Level material: stainless steel top roller plunger
Ambient operating temperature: 25°C to 80°C (with no icing)
Ambient operating humidity: 35% to 85%RH
Specification

Rated voltage	Non-inductive load				Inductive load
	Resistive load		lamp load		Inductive load		Moto load
	N.C	N.O	N.C	N.O	N.C	N.O	N.C	N.O
125 VAC	15	15	15	15	5	2.5	Max 30	Max 15
250 VAC	15	15	15	15	3	1.5
500 VAC	3	3	2.5	2.5	1.5	0.75
8 VDC	15	15	15	15	5	5
14 VDC	15	15	1	1	5	5
30 VDC	6(2)	6	5	5	5	5
125 VDC	0.4	0.4	0.05	0.05	0.05	0.05
250 VDC	0.2	0.2	0.03	0.03	0.03	0.03

Notes:
1. Inductive load has a power factor of 0.4min. (AC) and a time constant or
7msec (DC).
2. Lamp load has an inrush current of 10 times the steady-state current,
while motor load has an inrush current or 6 times the steady-state current.
3.Characteristics

Operating speed	0.01mm to 1m/sec
Operating	Mechanically: 240 operations/min.
frequency	Electrically: 20 operations/min.
Contact resistance	15mΩmax. (initial)
Insulation	100MΩmin. (at 500VDC)
resistance
Dielectric strength	1000VAC, 50/60Hz for 1 minute between
	non-continuous terminals
	2000VAC, 50/60Hz for 1 minute between
	current-carrying part and ground
Vibration	Mechanical durability: 10 to 55Hz
	1.5mm double amplitude
Shock	Mechanical durability:
	Approx. 1,000m/sec2 (approx. 100G's)
	Malfunction durability:
	Approx. 300m/sec2 (approx. 30G's)
Ambient operating	General purpose type: -25°to +80°C
temperature	Sealed type: -15 to 80°C
Humidity	General purpose type: 85%RH max.
	Sealed type: 95%RH
Service life	Mechanically: 20,000,000 operations min
	Electrically: 500,000 operations min.
Weight	Approx. 22 to 58g

Definitions of operating characteristics

OF: Operating Force	RF:Releasing Force
TF: Total Force	FP:Free Position
OP: Operating Position	RP:Releasing Position
TTP: Total Travel Position	PT:Pretravel
OT: Overtravel	MD:Movement Differential
TT:Total Travel

Model	NM-1305
OF Max	350g
RF Min	114g
PT Max	0.4mm
OT Min	1.6mm
MD Max	0.05mm
EP Max
OP mm	28.2±0.5
