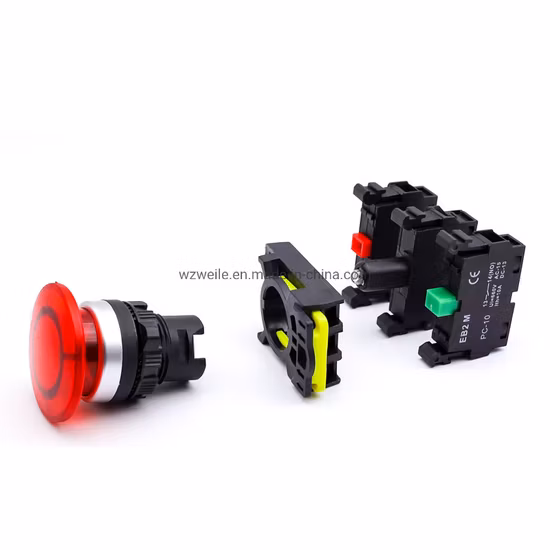

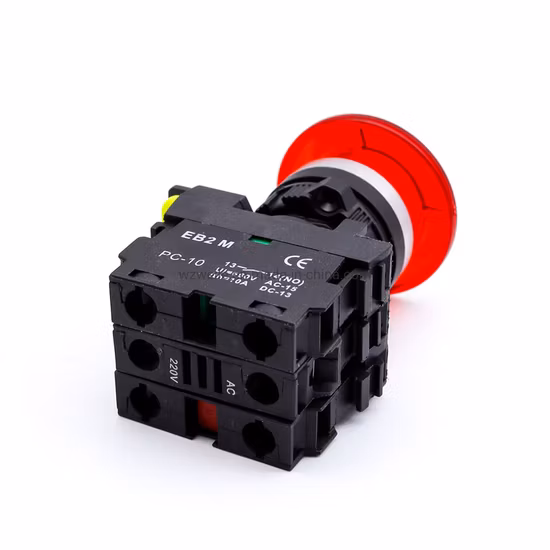

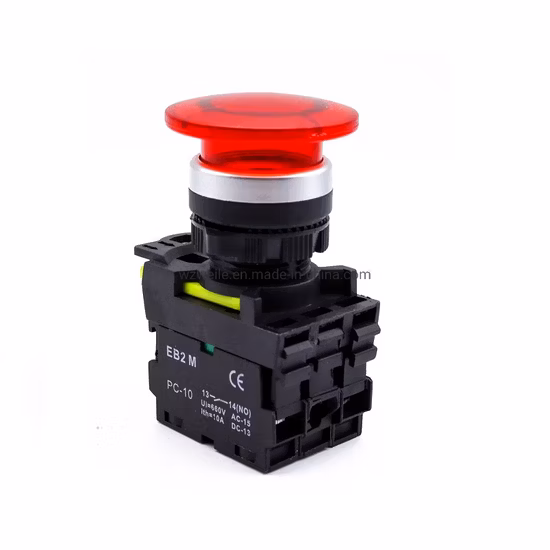

Push Button Switch La155 Wl155 Button, Xb5 Button, 22mm Plastic Emergency Stop Button with LED with Lamp Maintained

Basic Info.

Model NO.	WL155-A1-10MD
Number of Switch	Double Control Switch
Structure	Power Built-in Type
Usage	Control Button, Start Button, Limit Button, Reset Button, Check Button, Playback Switch, Disconnector, Change-over Switch, Control Switch
Kind	Single-pole on-off Switch
Contact Type	Type a Contact
Detection Method	Retro-reflective Mode
Brand	Weirro
Certification	ISO9001, CE, SGS/CE
Working Life	3000000 Times
Rate Value DC	DC-13,24-250V
Rate Value AC	AC-15,36-380V
Temperature	-25~+55
Protection Degree	IP40/65
Conventional Thermal Current	Ith 10A
Transport Package	20PCS/Inner Box, 200PCS/CTN
Specification	22mm
Trademark	weirro
Origin	China
HS Code	853650000
Production Capacity	50000PCS Per Month

Product Description

Introducing the Push Button Switch La155 Wl155 Button, Xb5 Button, 22mm Plastic Emergency Stop Button with LED with Lamp Maintained - the perfect solution for your industrial needs. This high-quality push button switch is designed to provide reliable and efficient performance, making it an ideal choice for start and stop applications. With a 22mm plastic emergency stop button and LED with lamp maintained, this switch ensures maximum safety and convenience. Its sleek and durable design makes it suitable for use in a wide range of industrial settings. So, if you're looking for a reliable and efficient push button switch, look no further than the Push Button Switch La155 Wl155 Button, Xb5 Button, 22mm Plastic Emergency Stop Button with LED with Lamp Maintained.
Product Desciption:

Test Standard:	EN60947-5-1:2017
Ambient temperature:	-25ºC~+55ºC
Pollution Grade:	Class 3
Protection Grade:	IP40/IP60
Ui(V):	AC660V
Ith(A):	10A
Voltage of Working:	2.5KV(AC valid value )1M
Insulated resistance:	≤50MΩ
Rated Capacity AC-15:	220V/6A,380V/4A,660V/2A
Rated Capacity DC-13:	24V/6A,48V/3A,110V/1A,220V/0.5A,440/0.25A
Working Life:	≥1000X1000
Class installation:	II
Short-circuit Protection:	RT16-10A
Cable gland:	PG13.5
Vibration Resistance:	≥10g
